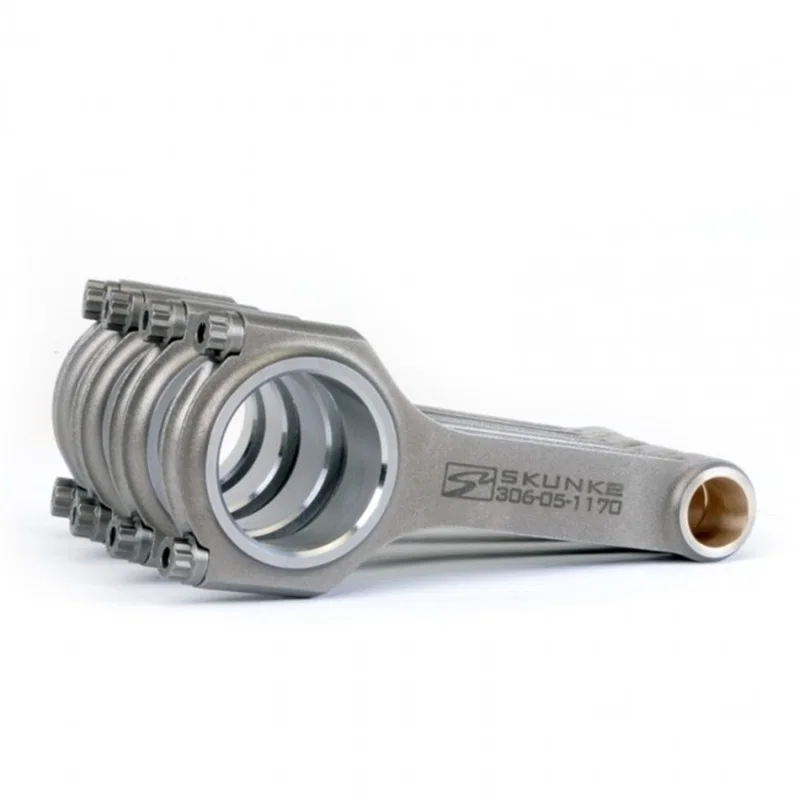

Skunk2 Racing Alpha Series Honda H22A Connecting Rods

Part # 306-05-1170SKU SKUR306-05-1170

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandSkunk2 Racing
Part typeEngine Connecting Rod Set
UPC / GTIN00873265000968
  • Dual-Pin Oil Passages For Increased Lubrication And Strength
  • Pin End Compatible w/Most Pistons w/o Machining
  • Shot-Peened For Reduced Fatigue
  • 3/8-in. ARP2000/Skunk2 Bolts
  • Bronze Wrist Pin Bushings
  • Magna-flux Inspected
  • Balanced +/- 1 Gram
  • Weight 540 grams
  • Length 143.15mm
  • 900+ HP Capable
  • Heat Treated
  • FEA Analyzed

Description

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications.

Fits these vehicles 1

YearMakeModel
1993 - 2001HondaPrelude
