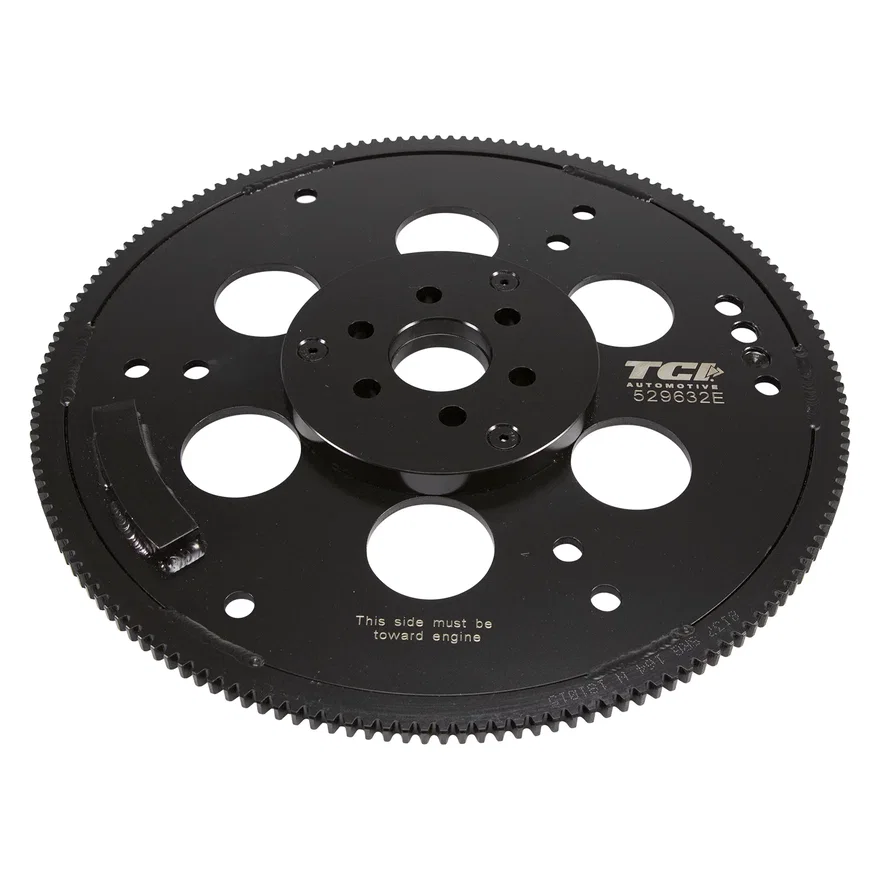

TCI Automotive Ford Small Block to GM Transmission Adapter Flexplate w/ 28 Oz Balance
Part # 529632ESKU TCI529632E
Universal fit
| Brand | TCI Automotive |
|---|---|
| Part type | Automatic Transmission Flexplate |
| Attachment Type | Bolts |
| Balance Weight | 28 oz |
| Color | Black |
| Compatible Ford Engines | 289, 302, 5.0, 351W |
| Compatible GM Transmissions | 4L80, 4L60, 700R4, 2004R, TH400, TH350, Powerglide |
| Compatible w/ TCI 4X Transmissions? | Yes |
| Compatible w/ TCI 6X Transmissions? | Yes |
| Crankshaft Bolt Pattern | SBF |
| Describes Color | Black |
| E-Coated? | Yes |
| Grade Type | Performance |
| Includes Hardware? | Yes |
| Includes Pilot Adapter? | Yes, Built-In |
| Inside Diameter | 2.125 |
| Material | Steel |
| Mounting Hole Diameter (To Crankshaft) | 15/32 |
| Mounting Hole Diameter (To to Torque Converter) | 15/32 |
| Mounting Hole Quantity | 6 |
| SFI Approved? | No |
| Tooth Quantity | 164 |
| Torque Converter Bolt Pattern | 10.75 and 11.5 in |
| UPC / GTIN | 00788120038966 |
Description
TCI 28 oz. Ford to GM Adapter Flexplate is a simple bolt-on to an externally balanced Small Block Ford engine but allows the use of a GM transmission and torque converter when using adapter kits or adapter transmissions, such as the TCI 4x and 6x kits featuring this flexplate. Easy install due to built-in pilot adapter. Dual bolt pattern allows for use with 10.75 or 11.5" pattern. Precision CNC-machined - Blanchard ground for flatness, checked for runout, balance, and bolt-hole location on a Coordinate Measurement Machine (CMM). Black E-coated for corrosion resistance and higher quality finish than traditional paint.
