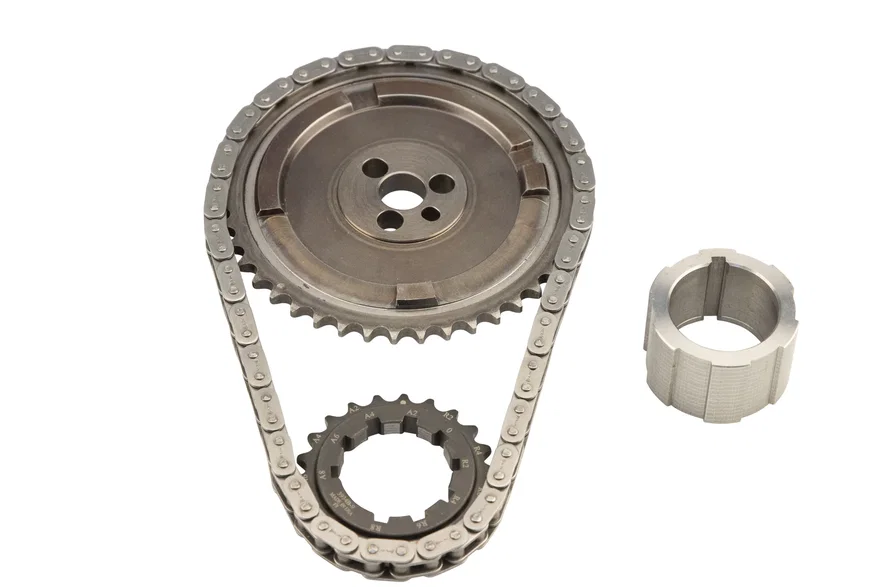

COMP Cams Hi-Tech 9-Keyway Single Row Timing Set for 3-Bolt GM LS

Part # 3116CPGSKU COM3116CPG

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Timing Set
Amazon ASINB07MM2ZZS6
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Camshaft Sprocket MaterialSteel
Clears Factory Timing Cover?Yes
Crankshaft Sprocket MaterialSteel
Engine FamilyLS
Keyway AdjustableYes
Maximum Advance8 deg
Maximum Advance At Camshaft4 deg
Maximum Retard8 deg
Maximum Retard At Camshaft4 deg
Number of Crankshaft Keyways9
Replacement Chain Part Number9303
Timing Chain TypeSingle
Timing Set SeriesHi-Tech
UPC / GTIN00036584389774
  • 9 Keyway adjustable positions in 2 degree increments.
  • Allows up to 8 degrees of advance or retard for custom-tailored performance.
  • Excellent performance upgrade over stock.
  • Full roller design chain for decreased wear and friction.
  • Pre-stretched
  • heat-treated roller chain.
  • Balanced and quality checked to ensure run-out is within tolerance.
  • Ideal for street performance.
  • Adding separately available 9303 chain makes this timing set race ready.

Description

Hi-Tech Roller Race Timing Set for GM LS Gen IV (58x) Applications, Single Chain 9 Keyway (Three-Bolt, 4 Pole Reluctor) features:

< ul>< li>9-keyway crank sprocket offering 8 degrees maximum advance/retard (16 degrees total)</li>< li> Single chain, full Roller timing sets offer an excellent performance upgrade from stock</li>< li> Cast iron Camshaft Gear and induction hardened Steel crank sprocket increase durability</li>< li> Dynamically balanced and quality checked for run-out tolerances</li>< li> Pre-stretched and heat-treated chains avoid further stretching or breaking, which can lead to timing errors or internal engine damage</li>< li> Ideal for all non-VVT LS street performance and Race Applications</li></ul>
