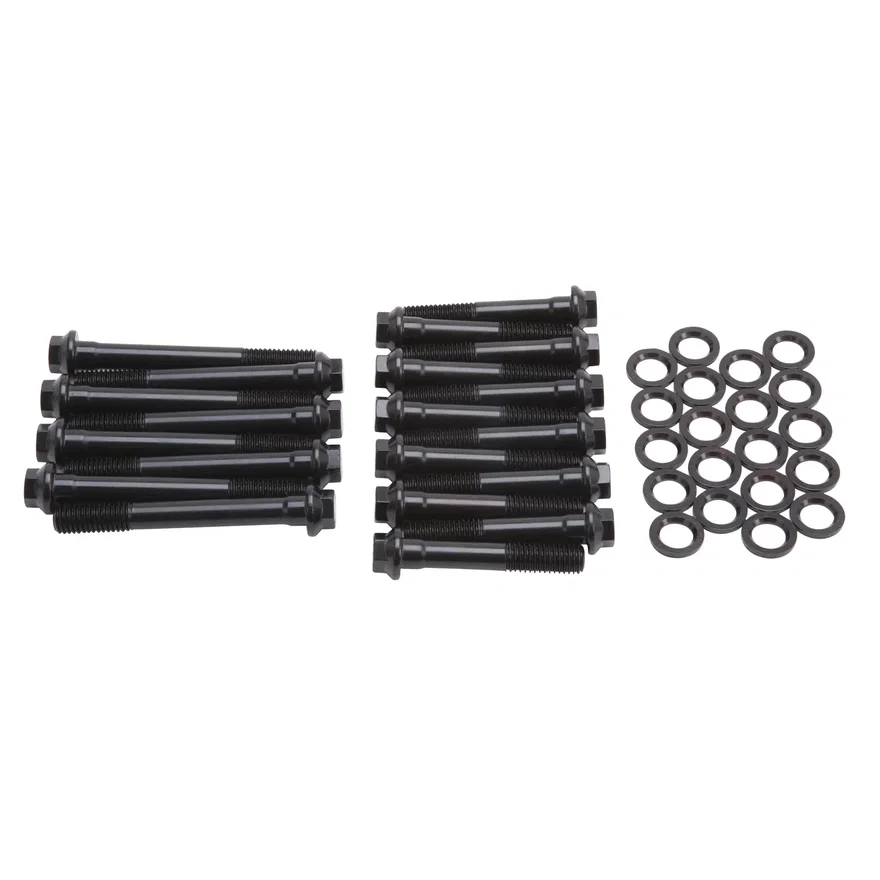

Edelbrock E-Series Cylinder Head Bolt Kit #85032 for Buick 400/430/455 engines

Part # 85032SKU EDE85032

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Cylinder Head Bolt Set
FinishBlack Oxide
Grade TypePerformance
Head Drive TypeHex
Length(8) 4.00 in, (12) 2.88 in
MaterialSteel
Minimum Length2.88 in
QuantityKit
Thread Diameter0.5 in
Thread TypeCoarse
Washers IncludedYes
UPC / GTIN00085347850327

Description

Edelbrock E-Series Cylinder Head Bolt Kit #85032 is designed for use with Edelbrock Performer RPM 60049 Cylinder Heads for Buick 400/430/455 CID big-block engines, or any Buick cylinder heads with similar column heights. This kit includes a complete set of bolts for a pair of cylinder heads. These bolts are intended for cylinder heads with four head bolt columns of 1.92 height, two columns of 1.925 height which accept a 2.88 head bolt when used with a .120 washer, and four head bolt columns of 3.11 height which accept a 4.00 bolt with a .120 washer. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
