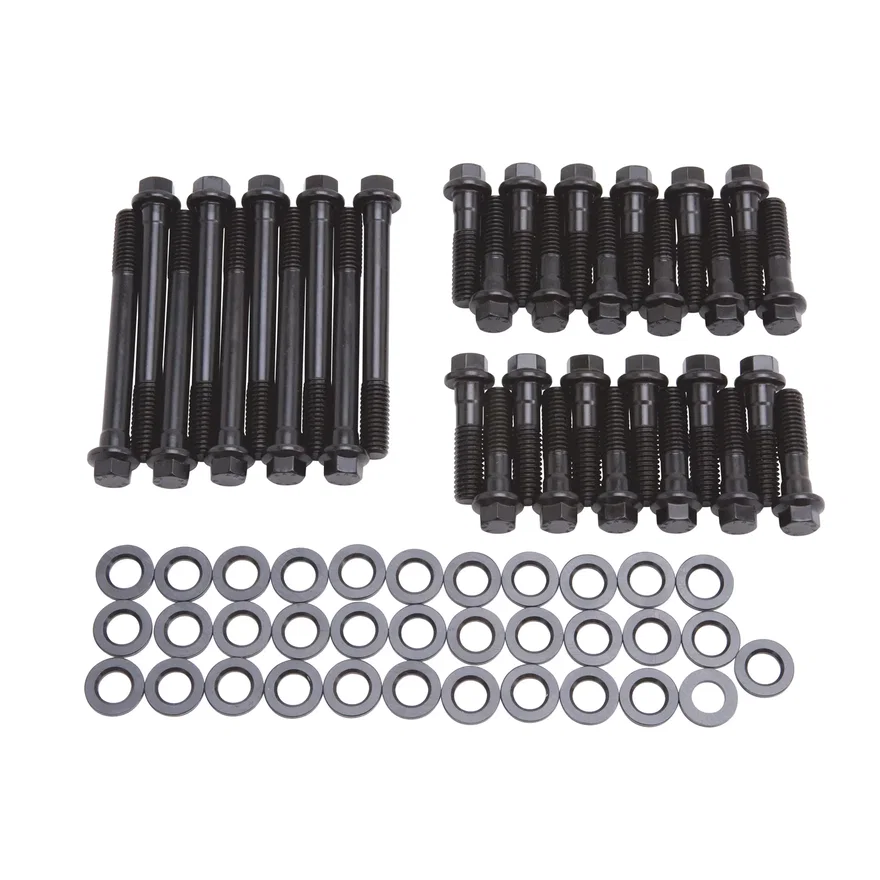

Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block

Part # 85912SKU EDE85912

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Cylinder Head Bolt Set
FinishBlack Oxide
Grade TypePerformance
Head Drive TypeHex
Length(24) 1.75 in, (10) 4.00 in
Material8740 Chromoly
Minimum Length1.75 in
QuantityKit
Thread Diameter0.4375 in
Thread TypeCoarse
Washers IncludedYes
UPC / GTIN00085347859122
  • For big-block Chrysler w/E-Street/Performer RPM aluminum heads
  • Yield tensile strength of 190,000 PSI
  • Heat treating with rolled threads for superior form and strength
  • black-oxide finish with sealer
  • Edelbrock E logo stamped on bolt head

Description

Edelbrock E-Series Cylinder Head Bolt Kit #85912 is specially designed for use with Chrysler big-block engines equipped with E-Street/Performer RPM cylinder heads (#60825, 60829, #60929, #60185, #60189, #5090 and #5093). This kit contains all necessary bolts and washers to install one set of heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
