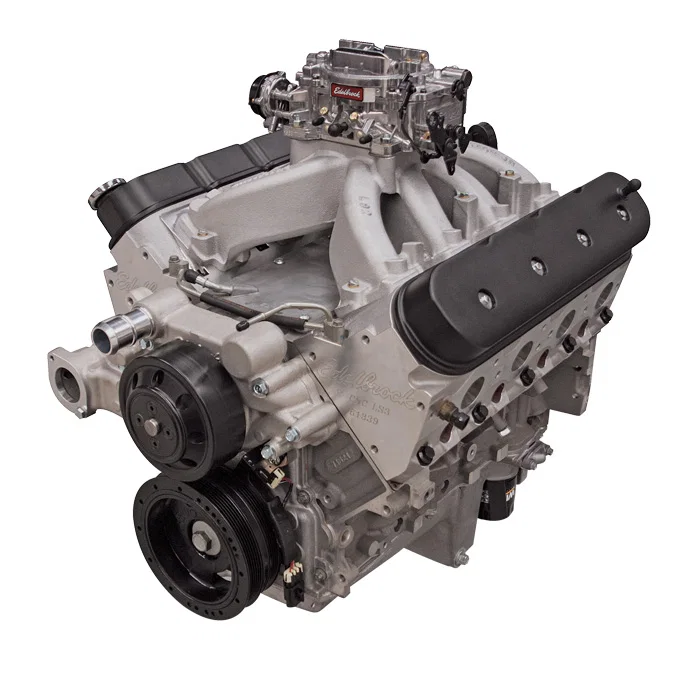

Edelbrock Crate Engine #46727 GM LS3 Gen V 416, Carbureted, 602 HP, 538 ft-lbs
Part # 46727SKU EDE46727
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Complete Assembly |
| Air Cleaner Type | Not Included |
| Alternator Included | No |
| Camshaft Type | Rollin' Thunder, Hydraulic Roller |
| Carburetor Choke Type | Electric |
| Carburetor Type | AVS2 800 CFM, Satin |
| Compression Ratio | 9.0:1 |
| Construction Type | Assembled |
| Crankshaft Material | Forged Steel |
| Cylinder Head Material | Aluminum |
| Cylinder Head Type | Victor Jr. |
| Displacement | 416 CID |
| Distributor Included | No |
| Engine Block Material | Cast Iron |
| Flywheel Included | No |
| Grade Type | Performance |
| Hardware Included | Yes |
| Harmonic Balancer Included | Yes |
| Horsepower | 602 |
| Induction Type | Carbureted |
| Intake Manifold Type | Victor Jr., Dual 4150, Satin |
| Main Bearing Cap Bolt Quantity | 4-Bolt |
| Manifold Material | Aluminum |
| Oil Filter Included | Yes |
| Oil Pan Included | Yes |
| Piston Type | Cast Aluminum |
| Plug Wire and Boot Included | No |
| Quantity | Sold Individually |
| Rear Main Seal Type | 1-Piece |
| Rocker Arm Ratio | 1.7:1 |
| Rocker Arm Type | LS3 |
| UPC / GTIN | 00085347467273 |
Description
Edelbrock Victor Jr. 416 LS crate engine part #46727 delivers an impressive 602 horsepower and 538 ft-lbs. of torque on 91 octane pump gas. It features a GM aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons to create a 416 c.i.d. LS3 stroker with 4.065" bore and 4.000" stroke. The Victor Jr. LS 416 is topped off with a complete Edelbrock LS3 Top End that is designed to maximize performance. This Power Package combo includes Victor Jr. LS3 cylinder heads #61339, Victor Jr. LS3 Intake Manifold #28456 and Rollin' Thunder hydraulic roller camshaft #2219. Its compact profile makes this engine a great solution for a hassle-free swap into any muscle car, street rod or truck! The Edelbrock Victor Jr. LS 416 crate engine is the ultimate carbureted powerplant for your high performance build. Engine Specifications - Finish: Black powder coated - Displacement: 416 c.i.d. - Horsepower: 602 hp - Torque: 538 ft-lbs. - Compression: 11.2:1 - Block: NEW GM LS3 Aluminum - Crankshaft: Manley Forged 4340 - Pistons: Manley Forged Aluminum - Rods: Manley Forged H-Beam - Camshafts: Edelbrock Rollin' Thunder #2219 - Rocker Arms: LS3, 1.7 ratio - Manifold: Edelbrock Victor Jr. #28456 - Cylinder Heads: GM with Edelbrock Victor Jr. #61339 - Carburetor: 800 cfm Thunder AVS. #1813 - Water Pump: Victor #8894 with Pulley #8899 - Warranty: 2-year / Unlimited mileage
