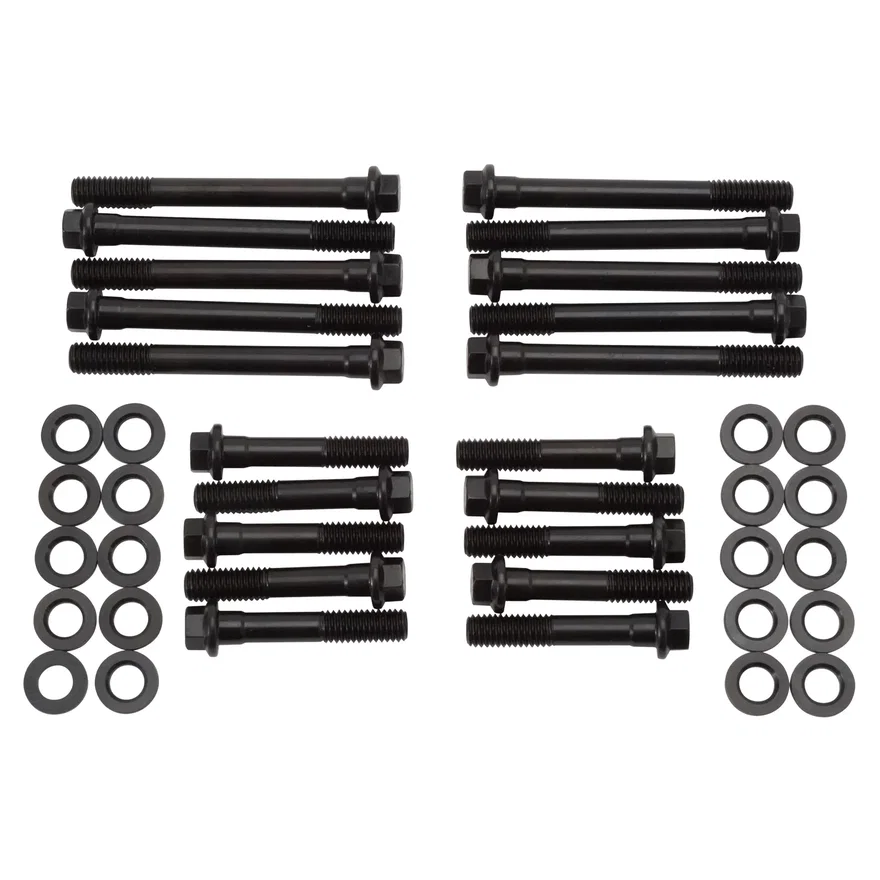

Edelbrock E-Series Cylinder Head Bolt Kit #85522 for Ford small-block engines

Part # 85522SKU EDE85522

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Cylinder Head Bolt Set
FinishBlack Oxide
Grade TypePerformance
Head Drive TypeHex
Length(10) 2.50 in, (10) 4.00 in
Material8740 Chromoly
Minimum Length2.5 in
QuantityKit
Thread Diameter0.4375 in
Thread TypeCoarse
Washers IncludedYes
UPC / GTIN00085347855223
  • For Ford 289-302 with aluminum heads
  • Yield tensile strength of 190,000 PSI
  • Heat treating with rolled threads for superior form and strength
  • black-oxide finish with sealer
  • Edelbrock E logo stamped on bolt head.

Description

Edelbrock E-Series Cylinder Head Bolt Kit #85522 is a high-quality set of bolts for use on Ford 289-302 blocks with standard 7/16-inch head bolt bosses. This E-Series kit is a perfect choice when upgrading to Edelbrock Performer or Performer RPM Cylinder Heads. This kit includes step-washers for use with aftermarket aluminum heads using -inch head bolt holes. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
