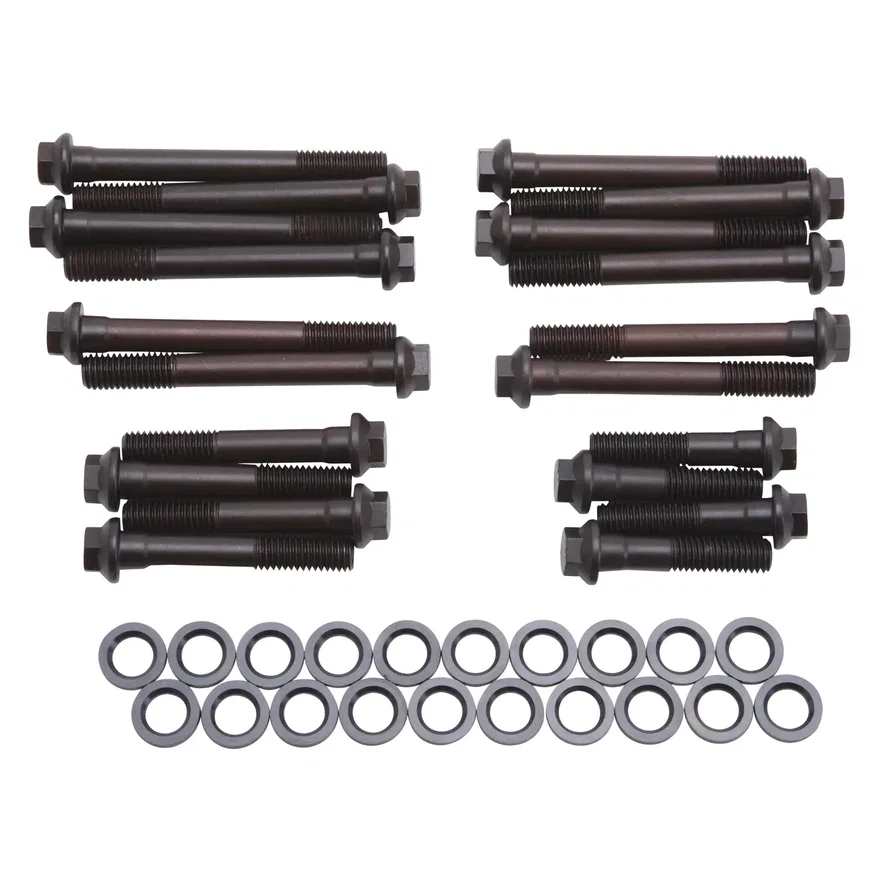

Edelbrock E-Series Cylinder Head Bolt Kit #85562 for Pontiac w/Edelbrock heads
Part # 85562SKU EDE85562
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head Bolt Set |
| Finish | Black Oxide |
| Grade Type | Performance |
| Head Drive Type | Hex |
| Length | (4) 2.25 in, (4) 4.15 in, (2) 4.25 in, (2) 3.75 in, (4) 4.00 in, (4) 3.00 in |
| Material | 8740 Chromoly |
| Minimum Length | 2.25 in |
| Quantity | Kit |
| Thread Diameter | 0.5 in |
| Thread Type | Coarse |
| Washers Included | Yes |
| UPC / GTIN | 00085347855629 |
- For use with Performer/Performer RPM heads for Pontiac
- Yield tensile strength of 190,000 PSI
- Heat treating with rolled threads for superior form and strength
- black-oxide finish with sealer
- Edelbrock E logo stamped on bolt head
Description
Edelbrock E-Series Cylinder Head Bolt Kit #85562 is designed for use on Pontiac engines with Edelbrock Performer and Performer RPM Cylinder Heads #6056-6058. Note that this head bolt kit is required to install these Edelbrock Pontiac heads. The 6056-6058 cylinder heads require a head bolt kit that is similar to that needed for a Ram-Air IV head, which is different from a standard D-port head. Several of the bolt boss heights have been increased to enhance the potential of the heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
