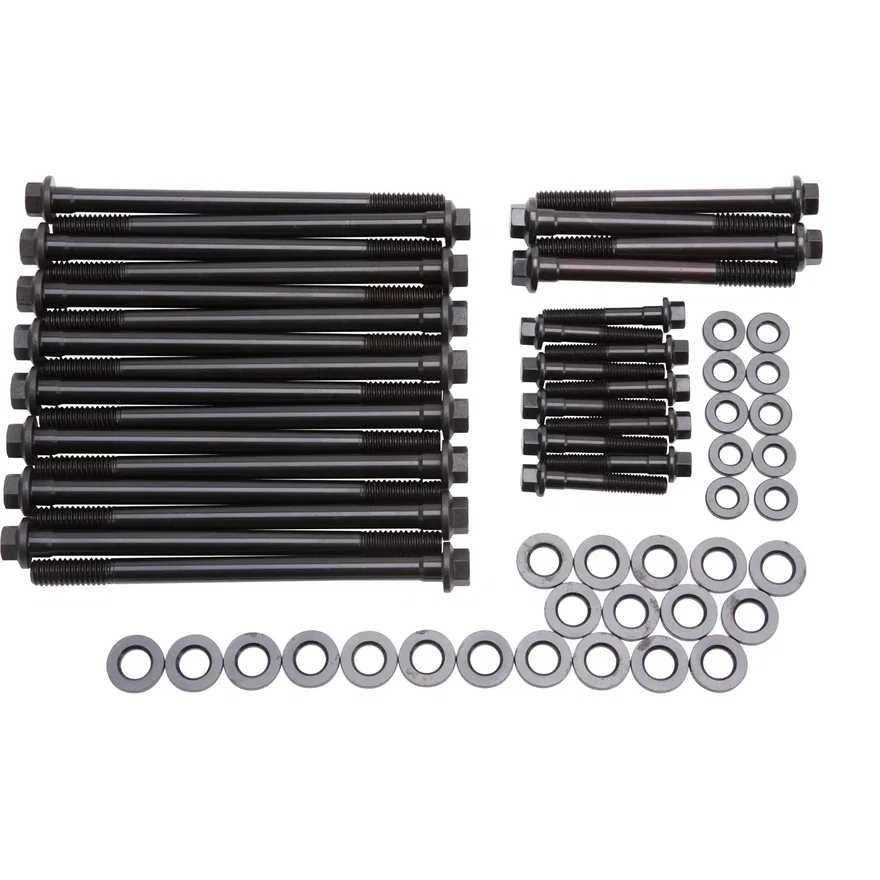

Edelbrock Gen III LS1 Head Bolt Kit
Part # 8596SKU EDE8596
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head Bolt Set |
| Finish | Black Oxide |
| Grade Type | Performance |
| Head Drive Type | Hex |
| Length | (10) 1.89 in, (4) 4.01 in, (16) 6.22 in |
| Material | Chromoly |
| Minimum Length | 1.89 in |
| Quantity | Kit |
| Thread Diameter | (10) 0.3149 in, (20) 0.433 in |
| Thread Type | Coarse |
| Washers Included | Yes |
| UPC / GTIN | 00085347085965 |
Description
The Edelbrock #8596 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
More from Edelbrock
| 8595 | $452.99 |
| 85912 | $211.99 |
| 8505 | $666.99 |
| 8562 | $372.99 |
| 9693 | $186.99 |
| 85032 | $174.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2001 - 2004 | Avanti | II | 5.7L 350 V8 |
| 1998 - 2002 | Chevrolet | Camaro | 5.7L 350 V8 |
| 1997 - 2004 | Chevrolet | Corvette | 5.7L 350 V8 |
| 1998 - 2002 | Pontiac | Firebird | 5.7L 350 V8 |
| 2004 | Pontiac | GTO | 5.7L 350 V8 |
